HANDLING LARGE QUANTITIES OF SAMPLES - UP TO 1200 AT AN HOUR
The Tempus600® Necto is an automated solution for high throughput sample receipt, accessioning and transportation over long distances.
Samples are sorted by barcodes, dimensions, tube recognition or as a combination.
Necto streamlines the entire registering and sorting process, allowing samples to be transferred to up to six different locations – two local bins and four distant destinations. The Tempus600 sending module can be connected directly to bulk loaders or laboratory automation systems.
Necto comes standard with one sending module. One, two or three extra sending modules can be purchased.
Features
- Automated sample accessioning
- Samples can be transferred to up to six different destinations - two local bins and four distant destinations
- Processes a range of materials such as serum, plasma, whole blood, urine etc.
- Sample sorting by means of barcodes, dimensions, tube recognication or as a combination
- Cap colour color and tube geometry identification via camera
- Intelligent sample routing into waiting loop if test order is missing
- Compatible with all sample tubes of following dimensions: Length 80-110 mm, diameter 12-18 mm (including cap)
- Capacity of bulk compartment approximately 600 tubes
- Throughput of up to 1200 tubes/hour
- The cabinet dimensions are approximately (HxWxD) 160x220x76 cm.
Benefits
- Ideal in combination with any analytical platform
- No pre-sorting or handling of sample tubes required
- Safe, rapid and continuous operation without error
Tempus600® - Reliability and maintenance cost
Tempus600® - Reliability and maintenance cost
Language:
Tempus600® - The heart of pre-analytical sample flow management
Tempus600® - The heart of pre-analytical sample flow management
Language:
Tempus600® Case studies: Customer experiences
Tempus600® Case studies: Customer experiences
Language:

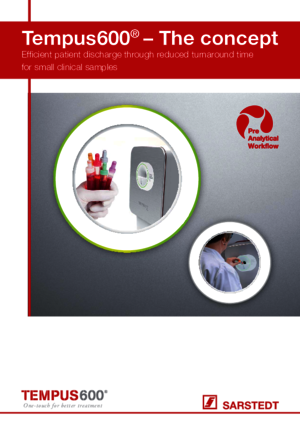

Tempus600® - The concept
