lumox® technology
The lumox® cell culture products are characterised by their ultra-thin, gas-permeable film base. Optimum gas exchange is guaranteed due to the gas permeability and the short diffusion paths. The low autofluorescence and the good light transmission of the lumox® film leads to consistently high sensitivity in assays and during the use of imaging and reader techniques. lumox® products enable a range of applications from normal tissue culture through to automated analysis of fluorescence-based cell assays.
-
lumox® multiwell, 24 94.6000.014
lumox® multiwell 24, cell culture plate, 24-well, with lumox® foil bottom, Black polystyrene frame,Standard growth surface for adherent cells, flat base, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 1 pc./paper/plastic packaging
- Growth area:
- 190 mm²
- Colour code:
- Red
-
lumox® multiwell, 24 94.6110.024
lumox® multiwell 24, cell culture plate, 24-well, with lumox® foil bottom, Black polystyrene frame,Standard growth surface for adherent cells, flat base, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 1 pc./paper/plastic packaging
- Growth area:
- 190 mm²
- Colour code:
- Red
-
lumox® multiwell, 96 94.6000.024
lumox® multiwell 96, cell culture plate, 96-well, with lumox® foil bottom, Black polystyrene frame,Standard growth surface for adherent cells, flat base, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 1 pc./paper/plastic packaging
- Growth area:
- 34 mm²
- Colour code:
- Red
-
lumox® multiwell, 96 94.6120.096
lumox® multiwell 96, cell culture plate, 96-well, with lumox® foil bottom, Black polystyrene frame,Standard growth surface for adherent cells, flat base, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 1 pc./paper/plastic packaging
- Growth area:
- 34 mm²
- Colour code:
- Red
-
lumox® multiwell, 384 94.6000.034
lumox® multiwell 384, cell culture plate, 384-well, with lumox® foil bottom, Black polystyrene frame,Standard growth surface for adherent cells, flat base, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 1 pc./paper/plastic packaging
- Growth area:
- 11 mm²
- Colour code:
- Red
-
lumox® multiwell, 384 94.6130.384
lumox® multiwell 384, cell culture plate, 384-well, with lumox® foil bottom, Black polystyrene frame,Standard growth surface for adherent cells, flat base, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 1 pc./paper/plastic packaging
- Growth area:
- 11 mm²
- Colour code:
- Red
-
lumox® dish 35 94.6077.331
lumox® dish 35, cell culture dish with lumox® foil bottom, Standard growth surface for adherent cells, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 5 pcs./bag
- Growth area:
- 6,4 cm²
- Colour code:
- Red
-

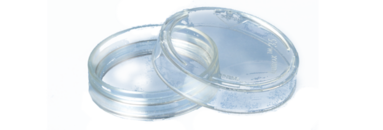

lumox® dish 35, Susp. 94.6077.333
lumox® dish 35, cell culture dish with lumox® foil bottom, hydrophobic growth surface for suspension and hybridoma cells, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 5 pcs./bag
- Growth area:
- 6,4 cm²
- Colour code:
- Green
-
lumox® dish 50 94.6077.410
lumox® dish 50, cell culture dish with lumox® foil bottom, Standard growth surface for adherent cells, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 5 pcs./bag
- Growth area:
- 19,6 cm²
- Colour code:
- Red
-
lumox® dish 50, Susp. 94.6077.305
lumox® dish 50, cell culture dish with lumox® foil bottom, hydrophobic growth surface for suspension and hybridoma cells, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 5 pcs./bag
- Growth area:
- 19,6 cm²
- Colour code:
- Green
Language:
Lumox® x-well Technology
Lumox® x-well Technology
Language:
Cell- and tissue culture
Cell- and tissue culture
Language:
General
-
+
Are the cell culture products checked for the presence of pyrogens or cytotoxins?
All of our tissue culture bottles, dishes and plates are labelled with our 'come grow with us' quality seal and certified as follows:
Non-pyrogenic
Based on the LAL test as per the FDA guideline for medical devices, detection limit < 0.06 EU/ml
Non-cytotoxic
In compliance with DIN EN ISO 10993 – 'Biological evaluation of medical devices – Part 5 Tests on in-vitro cytotoxicity'
Sterile
As per DIN EN ISO 11137 – 'Sterilization of health care products – Validation and routine control for sterilization with radiation'
-
+
What is lumox®?
lumox® is an ultra-thin, gas-permeable film which also has very good light transmission but no autofluorescence. This film forms the base of some cell culture tubes such as the lumox® dish, the lumox® multiwell and the x-well lumox® detachable.
-
+
Which products are suitable for carrying out fluorescence or luminescence-based measurements of cells?
The use of black plates is recommended for the measurement of fluorescence or luminescence in order to avoid signal crossover ('crosstalk') between the individual wells. The use of black plates also significantly reduces the variability of the results, thereby achieving a more even and more stable luminescence and fluorescence level for the respective reaction. This leads to a significantly improved reproducibility of the measurement results and therefore to increased accuracy of the measurements. lumox®multiwell products with 24, 96 or 384 wells are suitable for the microscopic assessment of such fluorescent or luminescent tests.
-
+
lumox® products are suitable for the cultivation of which cells?
lumox® multiwell and x-well lumox® detachable are available with a surface which is particularly suitable for adherent cells. lumox® dish is also available with a surface for suspension cells.
Product drawings
lumox®
94.6110.024
94.6120.096
94.6130.384
