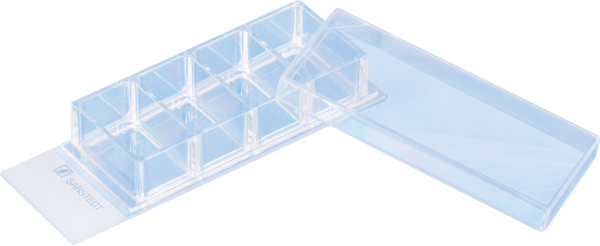

x-well cell culture chamber, 4 wells, on glass slide, removable frame
Order number:
94.6170.402
Product description
| Order number | 94.6170.402 |
|---|---|
| Product description | x-well cell culture chamber, 4 wells, on glass slide, removable frame, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 6 piece(s)/blister |
Product characteristics
| Closure type | slip-on lid |
|---|---|
| Design | on glass slide |
| Cell type | Adherent cells |
| Number of wells | 4 |
| Growth area | 1.9 cm² |
| Volume of work | 1 ml |
| Removable frame | yes |
Size
| Width of product | 24 mm |
|---|---|
| Length of product | 76 mm |
Material & colours
| Product material | soda-lime glass |
|---|---|
| Frame material | Polystyrene (PS) |
Purity & certification
| Product category | no medical device | IVD |
|---|---|
| Purity standard | sterile, non-pyrogenic/endotoxin-free, non-cytotoxic |
| Sterilisation | Gas sterilisation |
| Pyrogen-free | yes |
| Batched | yes |
Packaging
| Minimum order qty. | 6 |
|---|---|
| Type of smallest subpackaging | blister |
| Piece(s) / inner box | 6 |
| Piece (s) / outer case | 96 |
| Piece(s) / pallet | 10368 |
| Depth of box | 127 mm |
| Width of box | 19 mm |
| Height of box | 258 mm |
| Depth of case | 275 mm |
| Width of case | 270 mm |
| Height of case | 185 mm |
| Case volume | 0.0137 cbm |
| Weight of product | 0.0144 kg |
| Weight of case | 2.26 kg |
| EAN of inner box | 4038917256438 |
| EAN case | 4038917256421 |
Language:
Cell- and tissue culture
Cell- and tissue culture
Language:
Cell library
Cell library
Language:
General
-
+
What are x-well products and what can they be used for?
X-well products are slide-based tissue culture chambers. They are made of slides and a polystyrene chamber with a lid and a bottle top. Using the x-well tissue culture chambers, adherent cells can be cultivated directly on the slide and analysed, for example using life-cell imaging. The same slide can then be used for staining and other microscopic analyses. We offer products with slides made from four different materials: glass, coverglass, PCA and lumox®.
-
+
In which x-well tissue culture chambers is the slide detachable?
The x-well slides made from glass, PCA and lumox® film are detachable. No tools are needed to detach the chambers, and no adhesive residue which may interfere with the results is left on the slide.
-
+
What is the maximum magnification at which the different x-well tissue culture chambers can optimally be viewed under the microscope?
The x-well coverglass tissue culture chambers can optimally be used up to a magnification of 1000 (100x lens) and the x-well tissue culture chambers with slides made of PCA, glass and lumox® film can be optimally used up to a magnification of 400 (40x lens).
