Product

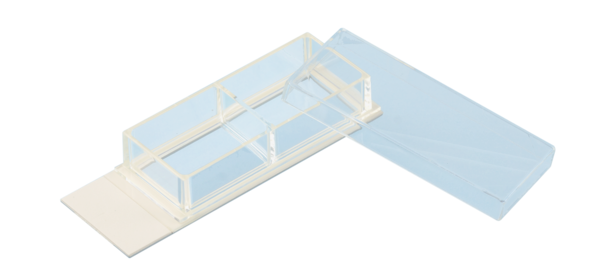

x-well cell culture chamber, 2 wells, on lumox® slide, removable frame

製品番号: 94.6150.201
x-well cell culture chamber, 2 wells, on lumox® slide, removable frame

製品詳細

製品番号 94.6150.201
Product description x-well cell culture chamber, 2 wells, on lumox® slide, removable frame, sterile, non-pyrogenic/endotoxin-free, non-cytotoxic, 6 piece(s)/blister

製品特性

Closure type slip-on lid
Design on lumox® slide
Cell type Adherent cells
Number of wells 2
Growth area 4.4 cm²
Volume of work 2 ml
Removable frame yes

サイズ

Width of product 24 mm
Length of product 76 mm

材質および色

Product material lumox®
Frame material Polystyrene (PS)

品質及び証明書

Product category no medical device | IVD
Purity standard sterile, non-pyrogenic/endotoxin-free, non-cytotoxic
Sterilisation Gamma irradiation
Pyrogen-free yes
Batched yes

包装

Minimum order qty. 6
Type of smallest subpackaging blister
Piece(s) / inner box 6
Piece (s) / outer case 96
Piece(s) / pallet 10368
Depth of box 127 mm
Width of box 19 mm
Height of box 258 mm
Depth of case 275 mm
Width of case 270 mm
Height of case 185 mm
Case volume 0.0137 cbm
Weight of product 0.0465 kg
Weight of case 5.34 kg
EAN of inner box 4038917255592
EAN case 4038917255585
製品仕様書

General

  • +

    x-well製品とは何ですか、どのような時に使用するのですか?

    x-well製品はスライドベースの組織培養チャンバーです。これらの製品はスライドに、ポリスチレン製のフタやフラスコ付きのチャンバーで構成されています。x-well組織培養チャンバーを使うと、付着細胞は、例えばライブセルイメージングにより、スライド上で直接培養や分析ができます。さらに、同じスライドを染色その他の顕微鏡分析に使用できます。当社では、ガラス、カバーガラス、PCA、lumox®の4つの異なる材質で製造されたスライド付きの製品を提供しています。

  • +

    スライドが取外し可能なのは、どのタイプのチャンバーですか?

    ガラス、PCA、lumox®フィルム製のx-wellスライドが着脱式です。チャンバーの取り外しにはツールは不要で、また分析結果の障害となる接着剤の跡がスライド上に残ることもありません。

  • +

    それぞれのx-well組織培養チャンバーを、顕微鏡下で最適に見られる最大倍率を教えてください。

    x-wellカバーグラス組織培養チャンバーは最大1000倍(100xレンズ)の拡大率で最適にご使用いただけ、PCA、ガラス、lumox®フィルム製のスライド付き組織培養チャンバーは最大400倍(40xレンズ)の拡大率で最適にご使用いただけます。
